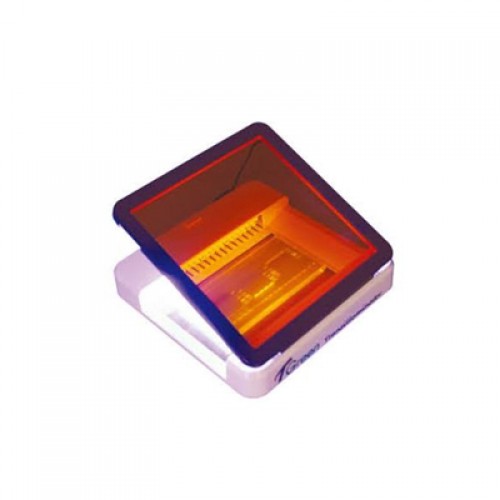

TGreen Transilluminator adopts LED blue light source, amber filter and 470-520 nm excitation light material, which can be used for observation and cutting of gels loaded with GFP protein, or nucleic acid stained with a variety of safety dyes/ EB. The TGreen Transilluminator can achieve perfect gel observation and cutting effect with no ultraviolet radiation, and provide a safe and humanized laboratory environment. This instrument can also be applied to other fluorescence observation with excitation wavelengths of 470-520 nm, such as proteins, small animals and plants with GFP tag.
Key Features
• High sensitivity: When used with GeneGreen, as low as 0.5 ng (1000 bp) dsDNA can be observed.
• Safe: Blue light source has no damage to human body, gel and sample.
• Wide application range: Compatible fluorescent dyes include LiGreen, GelRed, GelGreen, SYBR Green I, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, SYPRO Orange, SYPRO Tangerine, eGFP, Cy2, FITC, EB etc.
• Long service life: The service life of LED lamps is 50,000 hours.
• Humanization: Multi-angle rotation of filter facilitates gel cutting.
Specifications
1. Dimension (mm): 210 L x 210 W x 30 H
2. Viewing surface: 120 x 70 (mm)
3.Wavelength: 470 (nm)
4. Amber filter: the amber filter is wrapped in a metal frame
5. LED arrangement: the matrix provides double-sided lighting
6. LED lifetime: 50000 (h)
7. Power: 24V DC, 2.5 A power adapter
8. Maximum adapted gel size: 110 x 60 (mm)
9. Weight: 2.3 (kg)
Component
1. TGreen Transilluminator: 1 sett
